自动磁通测量仪-JT5558flux

应用领域:
@ The laser height measurement module
@ Three-dimensional Gauss probe (jt-5800), precision: 0.05%.
@ Tooling (1 sets)
@ Height detection probe, a CCD camera (1 sets)
@ Hhe electronic control (1 sets)
@ X.z-axis motion module, precision ball screw, Panasonic servo motor (group 2)

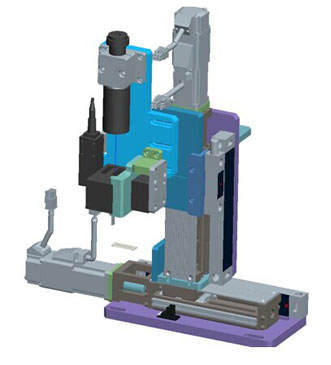

1、产品描述



x.z-axis motion module, precision ball screw, Panasonic servo motor (group 2)

the laser height measurement module;
● three-dimensional Gauss probe (jt-5800), precision: 0.05%.;
● CCD light source, telecentric lens (1 set);
● tooling (1 sets);
● height detection probe, a CCD camera (1 sets);

the grating (2);

the electronic control (1 sets);

computer (1);

detection software (1 sets).









      ★★★★Measurement of single magnet need time is 2 second,use fixture can measure multiple at a time.It can be programmed.★★★★




2、原理说明

PRINCIPLE

THEMAIN TASK IS MEASURE THE PRODUCT MAGNETIC FLUX. MEASUREMENT EVERY MAGNETIC FLUX OF PRODUCT.

PUT FIXTURE TO FIX THE PRODUCT. POSITIONING PRODUCT BY CCD. GAUSSIAN PROBE POSITIONING LOCATION OF PRODUCT. WE WILL MEASURE THE LASER HEIGHT OF THE PRODUCT BY LASER. THE SOFTWARE WILL BE THROUGH THE LASER MEASURE THE HEIGHT. SOFTWARE  WILL CALCULATED THE EDITED HEIGHT DIFFERENCE. PROBE WILL AUTOMATICALLY MOVED TO THE EDITED HEIGHT.  AUTOMATICALLY ACCORDING TO PROGRAM TO MEASURE THE GAUSS OF PRODUCT BY MOVING PLATFORM . IT WILL GIVE JUDGMENT SIGNAL(OK OR NG). ULTIMATELY DETERMINES WHETHER OR NOT THE MEASUREMENT VALUE OF THE PRODUCT CAN REACH YOUR REQUIREMENT.

.
